Naval History and Heritage Command
| Wavelength | 1.36 m |
| Pulse Width | 5 microsecond |
| Pulse Repetition Frequency
|
60 Hz |
| Power | 100 kW |
| Range | 40 nautical miles (70 km) (bomber) 30 nautical miles (55 km) (fighter) 12 nautical miles (20 km) (battleship) 8 nautical miles (15 km) (destroyer) |
| Antenna |
5' by 8.8' (1.52m by 2.68m) dipole array |
| Scan rate | 5 rotations per minute |
| Accuracy | 300 feet/1 degrees 90 meters/1 degrees |
| Resolution | 1500 feet/25 degrees 460 meters/25 degrees |
| Weight |
1500 lbs 680 kg |
| Production: | Available from 1942-9. A total of 1490 built by 1945. |
| Variants |

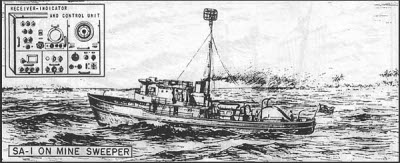

SA-1 was an even lighter weight version (900 lbs or 400 kg with a 5' by 6' [1.52m by 1.83m] antenna) for destroyer escorts, and frigates. It lacked lobe switching, which reduced its accuracy (to 3 to 5 degrees) |
The SA was a derivative of CXAM used on smaller naval vessels such as destroyers (SA), destroyer escorts, and frigates (SA-1). SA had improved resolution due to the use of lobe switching and provisions for Identification Friend or Foe, but neither model provided elevation information or could match the range of the best SC radars.
References
Naval History and Heritage Command (accessed 2011-3-31)
