B6N "Jill", Japanese Torpedo Bomber

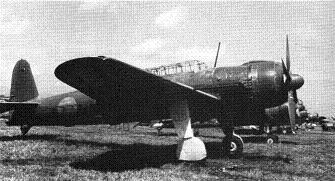

Photograph of B6N "Jill"

U.S. Air Force. Via Francillon (1979)

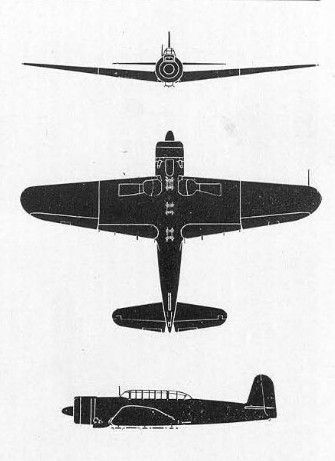

Three-view diagram of B6N "Jill"

FM 30-30


Nakajima B6N2 Tenzan ("Heavenly Mountain") "Jill"


Specifications:


Crew 2 or 3
Dimensions 48’10” by 35’8” by 12’6”
14.89m by 10.87m by 3.8m
Wing area 400 sq ft
37.2 sq m
Weight 6636-12,456 lbs
3010-5650 kg
Maximum speed       299 mph at 16,000 feet
481 km/h at 4900 m
Cruising speed 207 mph at 13,000 feet
333 km/h at 4000 m
Climb rate 31 feet per second
9.4 meters per second
Ceiling 29,700 feet
9040 m
Power plant One 1850 hp (1379 kW) Mitsubishi MK4T Kasei 25 fourteen-cylinder air-cooled radial engine driving a four-blade constant-speed metal propeller
Armament One flexible rear-firing 7.7mm Type 97 machine gun
One ventral tunnel flexible 7.7mm Type 97 machine gun
One fixed 7.7mm machine gun in the left wing
External stores
1 1764 lb (800 kg) torpedo or 3 551 lb (250 kg) bombs
Normal range 1085 miles (1750 km) normal
1890 miles (3040 km) maximum
Production 133 B6N1 production aircraft (Feb 1943-July 1943)
1,133 B6N2 production aircraft (June 1943-Aug 1945)
Produced by Nakajima Hikoki: 296 at Koizumi and the rest at Handa.
Variants The B6N1 used a 1870hp Nakajima Mamoru 11 engine and often omitted the wing gun.

The Jill was Japan’s counterpart to the American TBF Avenger, and in many ways it was superior. Unfortunately for the Japanese, by the time it went into combat in June 1944, good pilots were in short supply, and the Jill proved vulnerable to antiaircraft and to Hellcat fighters that its accompanying Zeros could no longer fend off.

The design team, led by Matsumura Kenichi, met a 1939 Navy specification for a replacement for the B5N Kate almost entirely by using a much more powerful engine. Stowage restrictions on carriers ruled out significant improvements in the airframe, other than eliminating the forward sweep of the vertical tail surface on the Kate. Like the Kate, the Jill had no bomb bay, carrying its torpedo under the fuselage offset to the side (to clear the oil cooler.) The prototypes were ready in the spring of 1941,but it was found that the vertical tail surface had to be tilted slightly to compensate for propeller torque. The modified aircraft handled well, but the Mamoru engine had serious teething problems, and carrier acceptance trials at the end of 1942 showed the landing hook was too weak. Carrier trials were completed in early 1943 and the aircraft was finally accepted for production. Even then, there were reports of rudders tearing loose during takeoff due to turbulence from the engine, requiring further redesign of the rudders.

The aircraft first saw combat at Bougainville in November 1943, operating from land bases around Rabaul. This proved so often the pattern that the B6N3 was to have a modified undercarriage to give it a better rough field capability. However, the war ended before the B6N3 went into production.

The initial design used protected gasoline tanks and rocket-assisted takeoff. The protected tanks reduced the range so much that they were eliminated in favor of unprotected semi-integral tanks. The high wing loading meant that the Jill could operate only off the largest Japanese carriers. Production was briefly interrupted when the Navy insisted that Nakajima cease production of the Mamoru engine, which required the Jill to be redesigned to take the Kasei 25 engine.

Photo Gallery

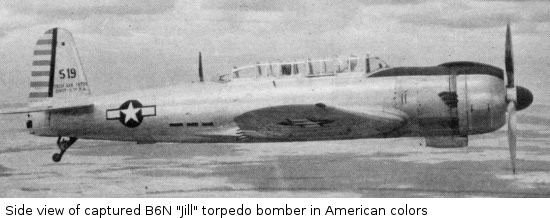

Side view of captured B6N "Jill" in U.S. colors

U.S. Army

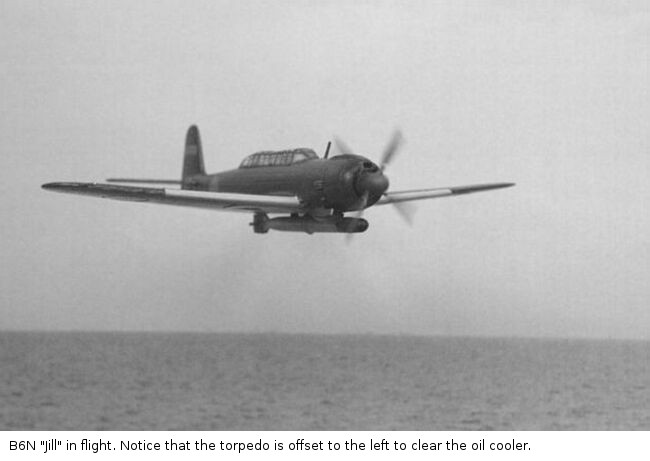

B6N "Jill" carrying torpedo

Wikimedia

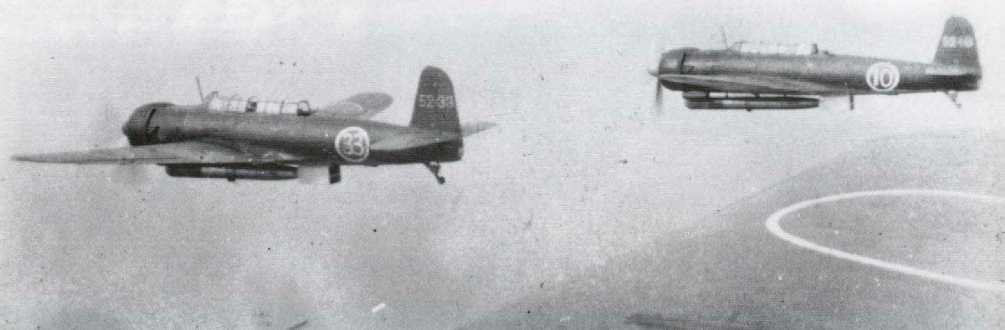

B6N "Jill" formation

Wikimedia

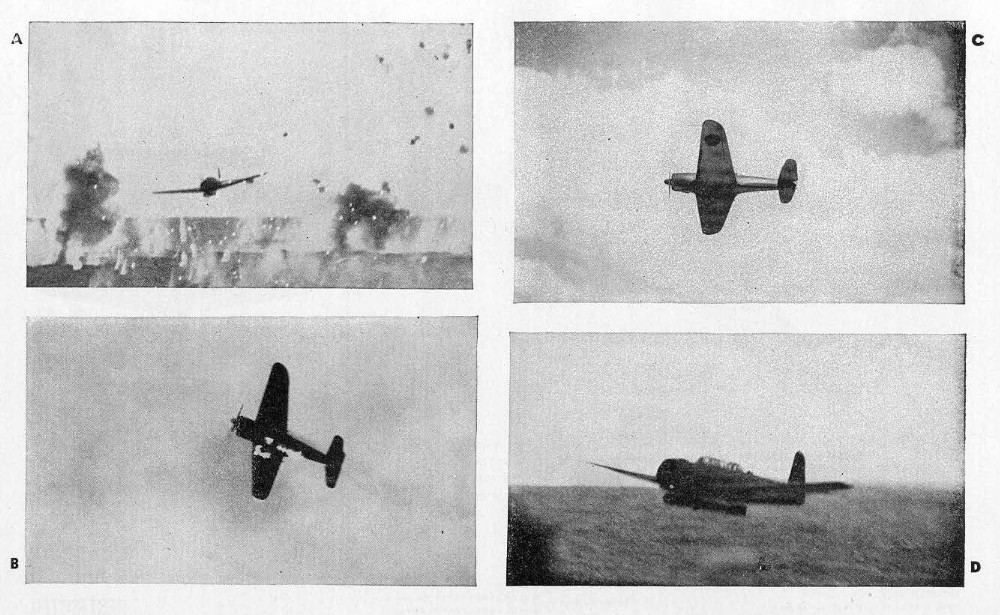

FM 30-30 page for B6N "Jill"

U.S. Navy

References

Francillon (1979)

Werneth (2008)
